Wiring of the BIOS chip

Pictures:

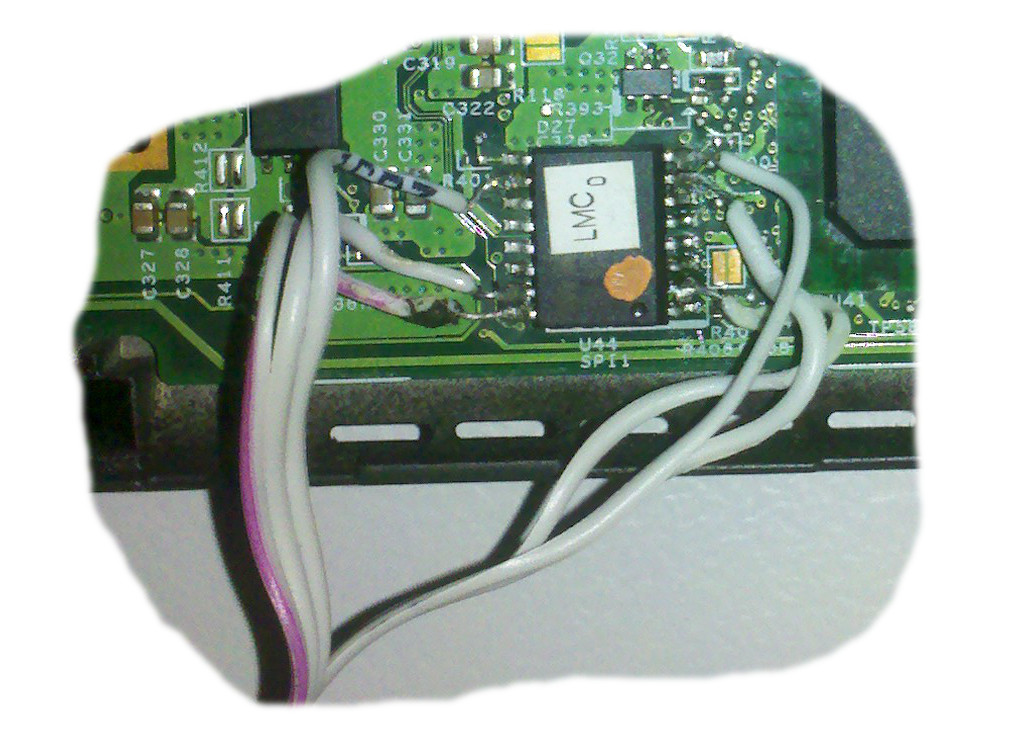

Wires soldered to MX25L6405D

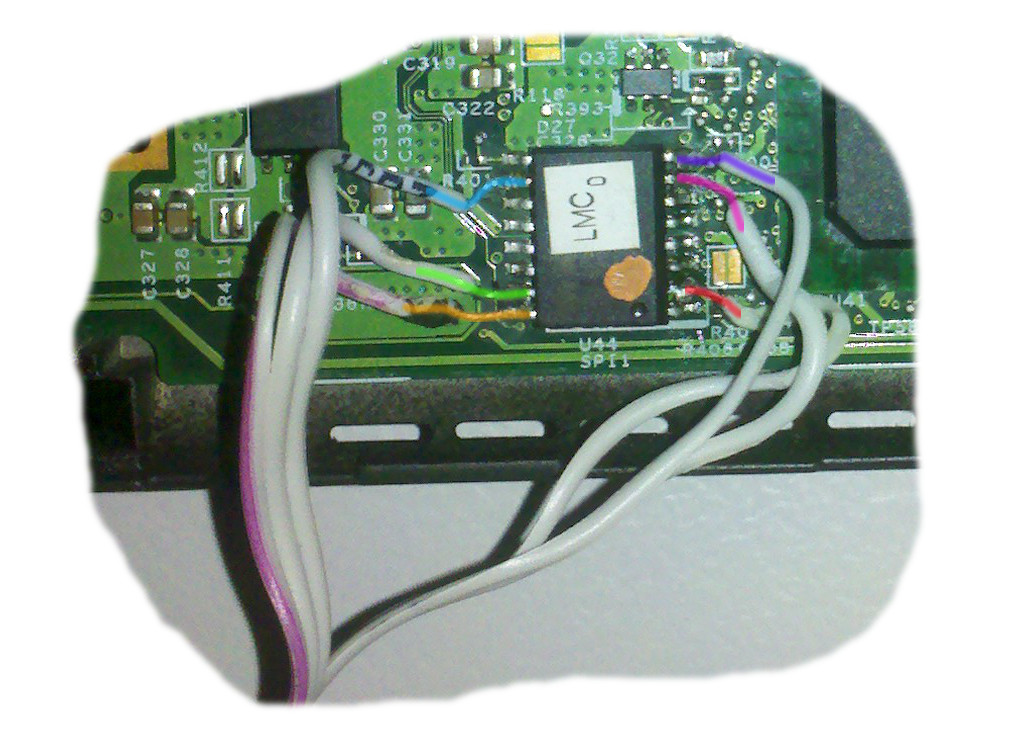

Wires soldered to MX25L6405D, coloured

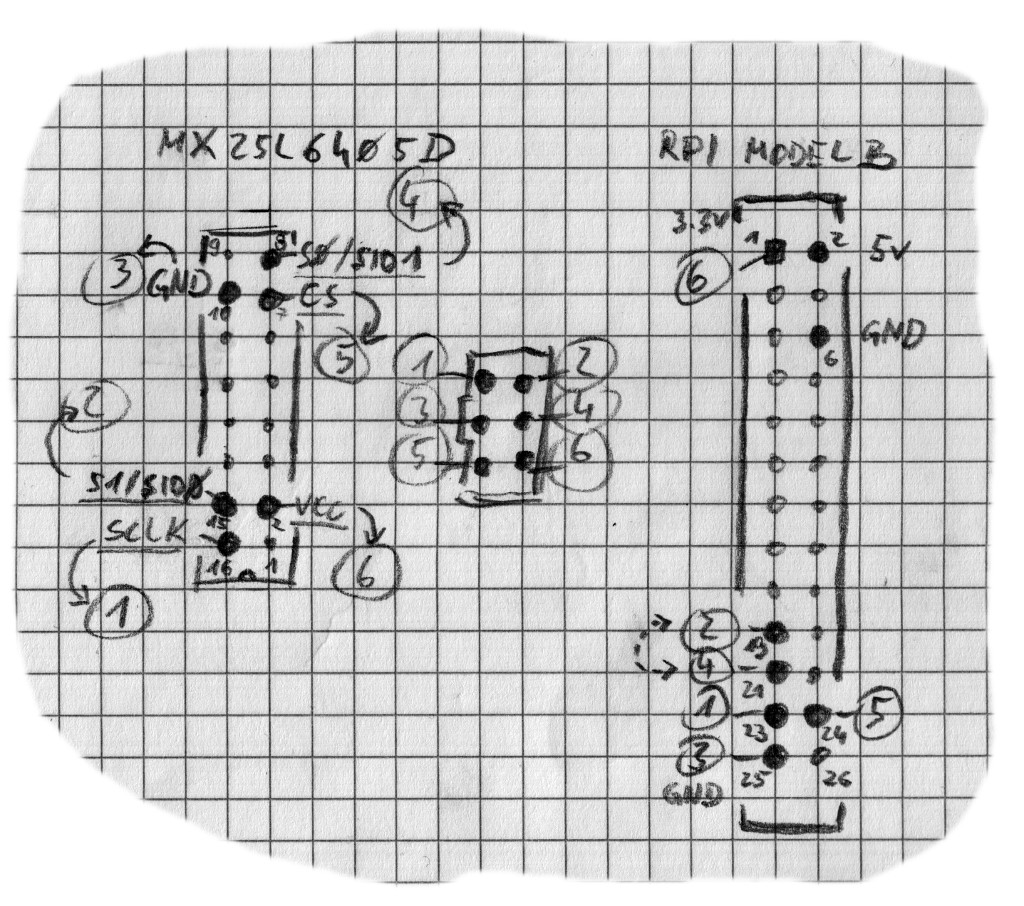

Sketch of the connection adapter

Notes:

The soldered contacts look all good and when the RPi is running, the MX25L6405D gets about 3.32V on the VCC pin.

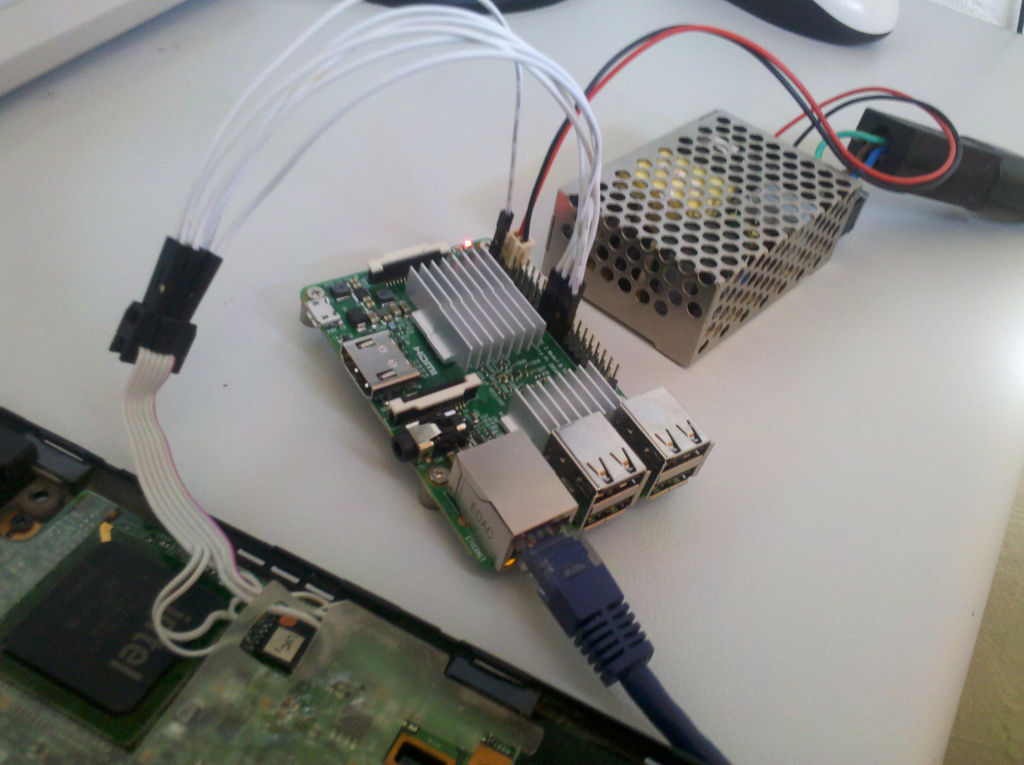

Output on the RPi2 with Slackware ARM current

As root user:

# flashrom -p linux_spi:dev=/dev/spidev0.0 -c MX25L6405 -w x200_8mb_usqwerty_vesafb.rom
flashrom v0.9.8-r1896 on Linux 3.18.9-v7-arm (armv7l)
flashrom is free software, get the source code at http://www.flashrom.org

Calibrating delay loop... OK.
Found Macronix flash chip "MX25L6405" (8192 kB, SPI) on linux_spi.
Reading old flash chip contents... done.
Erasing and writing flash chip... Reading current flash chip contents... done. Looking for another erase function.
Reading current flash chip contents... done. Looking for another erase function.
Reading current flash chip contents... done. Looking for another erase function.
Erase/write done.
Verifying flash... VERIFIED.
